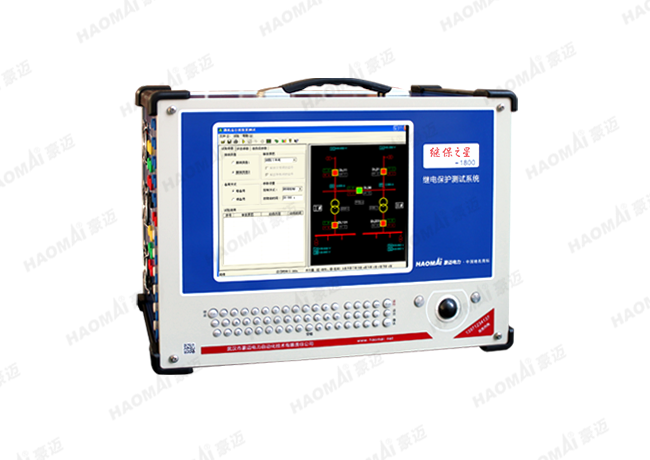

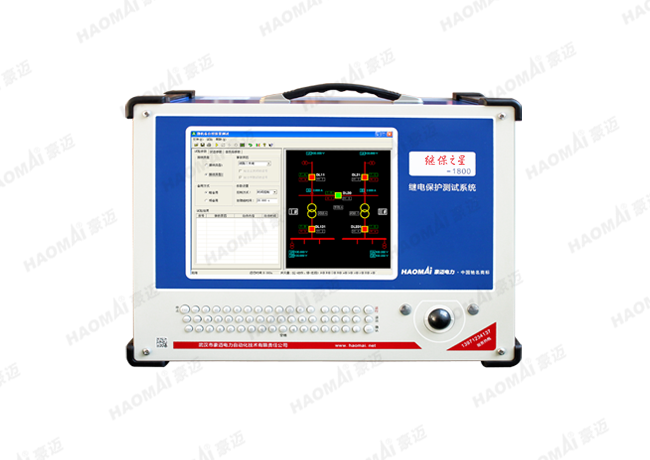

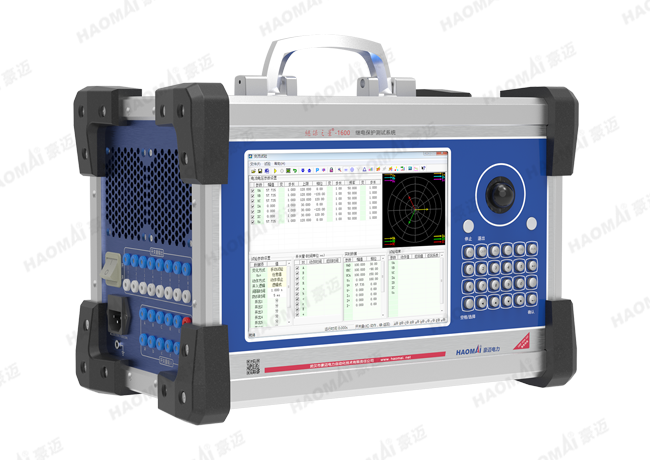

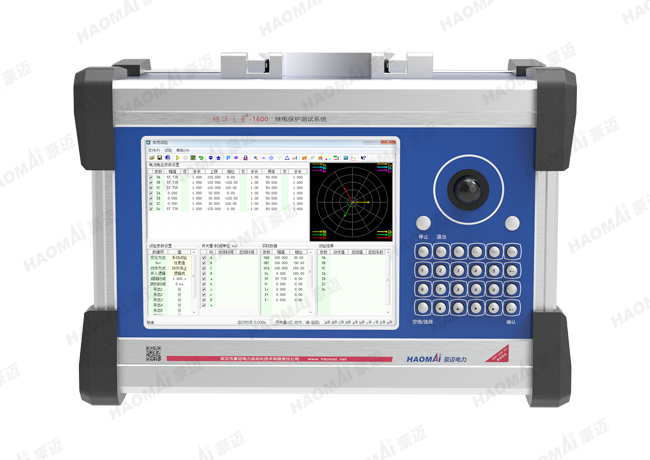

Relaystar-1600/1800 6-phase relay tester

——High-power high-precision relay protection tester

The Relaystar-1600/1800 6-Phase Relay Tester delivers unmatched power with 6×40A current and 6×150V voltage output, supporting parallel connections up to 180A for rigorous testing of electromagnetic high-load relays. Designed for critical infrastructure (substations, railways, power plants), it combines industrial-grade accuracy and GPS synchronization for end-to-end system validation.

Core Applications:

High-Current Device Testing: Validate protection schemes for generators, transformers, and rail systems under extreme loads.
Remote Automation: Operate via?embedded 10.4" touchscreen?or?external laptop?with auto-test scripts.
Multi-Phase Simulation: Replicate grid faults, harmonics, and asymmetrical conditions with precision.

Inquiry Now: sales@haomai.net

Description
Parameters
Cases
Downloads
Videos

Description

Technical Highlights

? Unrivaled Power Output
6-Phase Flexibility: 6×40A current + 6×150V voltage per phase, extendable to?180A total output.
High-Fidelity Amplifier: 0.1% accuracy for stable waveforms, even at max load.
? Smart Control & Monitoring
Dual Operation Modes: On-device touchscreen or remote PC control via Wi-Fi/software.
Built-In GPS: Enable synchronized end-to-end testing across distributed systems.
? Industrial Reliability
Self-Protection Mechanisms: Overheat/overload safeguards for continuous operation.
Modular Design: EMI-hardened components for stable performance in noisy environments.

Parameters

AC output
Current output	6×30A（150VA）
Voltage output	6×120V（70VA）
AC output accuracy	0.10%
AC phase range	0~360°
Phase accuracy	<0.1°?
Harmonic superposition	2~24 times
Harmonic range	DC~1200Hz
Harmonic accuracy	better than 0.01Hz
DC output
Current output	6×±10A?
Voltage output	6×±160V
DC output accuracy	0.20%
RJ45	1
Binary Input & output
output	8 channel
input	10 channel
?	?
?	?
?	?
?	?
?	?
?	?
?	?
