首頁(yè) > Products > AC/DC System Testing

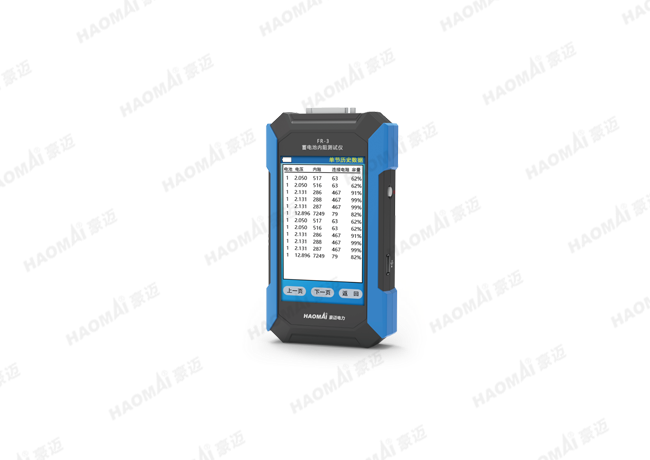

FR-3 Battery internal resistance Tester
——single battery internal resistance and capacity tester on AC injection method
Inquiry Now: sales@haomai.net
  • Description
  • Parameters
  • Cases
  • Downloads
  • Videos
Description
  • Test the internal resistance, voltage and capacity of the battery
  • Continuous test of single battery and battery pack one by one
  • Support customized battery type and its reference internal resistance value
  • Permanently store 999 battery parameters
  • The test data can be read and the test report generated
  • Free battery analysis software
  • Test the internal resistance and capacity of single battery by AC injection method
Parameters
Measuring range
Internal resistance  2V: 0 ～ 10m Ω; V: 0 ～ 100m Ω
Voltage:  0.0V ～ 15.0V; temperature: - 20 ℃ ～ 80 ℃
Resolution ratio:
Internal resistance  1 μ Ω, voltage 1mV
Measurement accuracy
Internal resistance  ± 2%, voltage ± 1%
?
