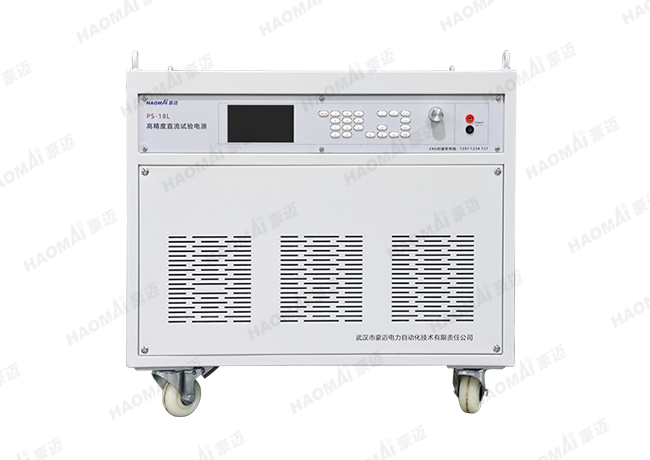

PS-18L High-precision high-current DC test power supply
PS-18L high-precision DC test power supply has advanced design and manufacture. It is used together with current comparator, and has the characteristics of good stability, strong anti-interference ability, good output waveform, overtemperature, overload, overvoltage, open circuit, current limiting and power supply default phase protection.
Inquiry Now: sales@haomai.net
- Description
- Parameters
- Cases
- Downloads
- Videos
Description
Parameters
| Rated input voltage | AC 380V±10%，50~60Hz |
| output voltage | DC 0~5V |
| Output current | DC 0~3000/6000A optional |
| Output current accuracy | better than 0.02%×rd+0.004%×range |
| Stability of output current | Better than 0.008%×rd+0.002%×range/1min. |
| Current ripple coefficient | Better than 0.008%×rd+0.2%×range |
| specifications | |
| size | 670×900×650mm3 |
| weight | 150kg |
