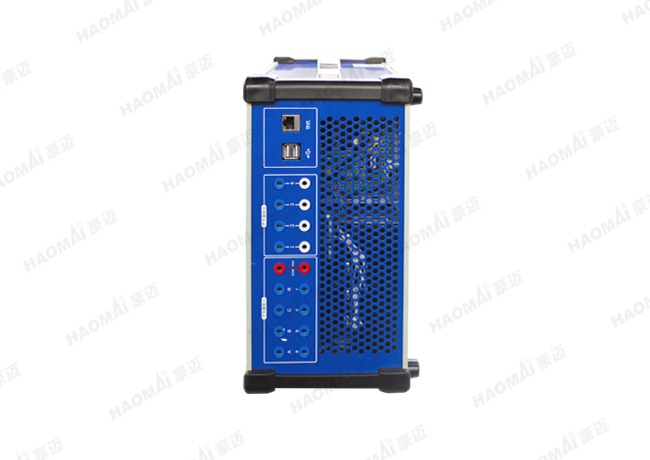

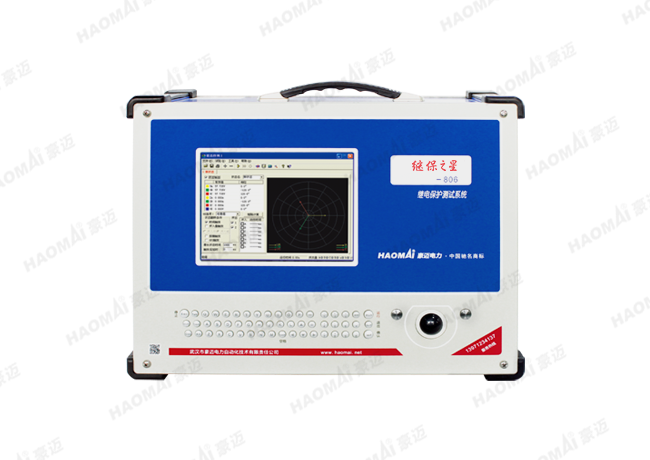

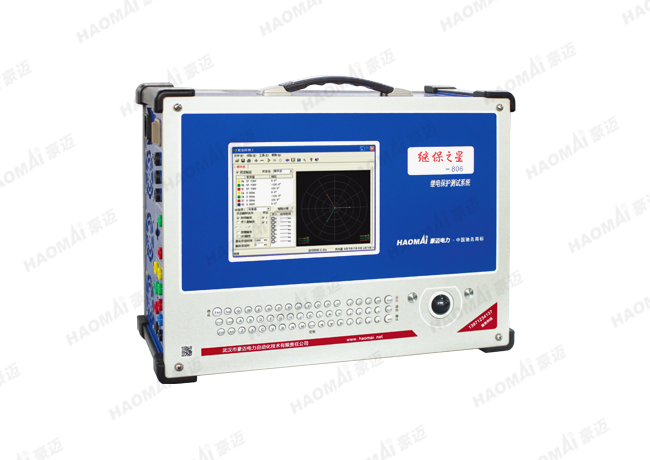

Relaystar-806/706 3-phase relay tester
——High power and high-precision relay protection tester
The device can provide three-phase 40A and three-phase 120V outputs, with exquisite materials, reasonable structure, and lightweight and portable design. With strong EMC performance, it is suitable for use in harsh environments and is the preferred tool for construction debugging, rapid operation and maintenance work.
Inquiry Now
- Description
- Parameters
- Cases
- Downloads
- Videos
Description
- > 3×40A 150VA
- > 4×120V 70VA
- > Accuracy 0.1%
- > Auto test available
- >All test applications for free
Parameters
| Model | Relaystar -806 | Relaystar-706 |
| AC output | ||
| Current output | 3x40A(150VA) | 3x40A(150VA) |
| Voltage output | 4x120V(70VA) | 4x120V(70VA) |
| AC output accuracy | 0.10% | 0.10% |
| AC phase range | 0~360° | 0~360° |
| Phase accuracy | <0.1° | <0.1° |
| Harmonic superposition | 2~24 times | 2~6 times |
| Harmonic range | DC~1200Hz | DC~300Hz |
| Harmonic accuracy | better than0.001Hz | better than 0.001Hz |
| DC output | ||
| Current output | 3x±10A | 3x±10A |
| Voltage output | 3x+160V | 3x+160V |
| DC output accuracy | 0.20% | 0.20% |
| Binary Input & output | ||
| output | 4 channel | 4 channel |
| input | 8 channel | 8 channel |
